5.08mm wire connector PCB Terminal block for Electric Lighting

Name: 508mm wire connector PCB Terminal block for Electric Lighting
Brand: SCED
Price: 1 USD

Brand Name : SCED

Model Number : TJ508-03

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 7-20 working days

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Pitch : 5.08mm

Current : 10A

Volt : 300V

Housing : PA66 / UL94, V-0

Poles : from 2P to 24P

Color : Green, black, grey and others

Contact Now

5.08mm wire connector PCB Terminal block for Electric Lighting

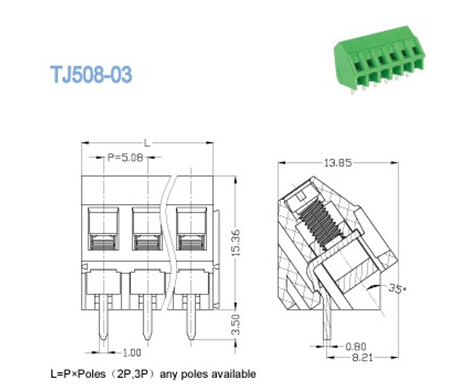

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 10		300 / 10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 10	320 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.4
Stripping Length mm	6-7
Screw / Torque / lbf.in	M3 / 4.4-5.3

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
