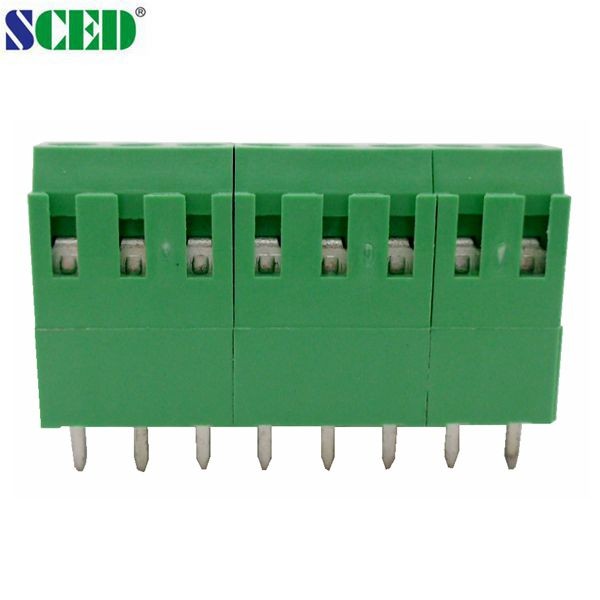

Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block

  • 1
  • 2

Brand Name : SCED

Model Number : TJ381-01

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Packaging Details : Standard export packing carton

Type : PCB

Pitch : 3.81mm

Nom.Voltage : 300V

Nom.Current : 10A

Wire Range : 16-24 A .W.G

Insulation material : PA66

Contact Now

Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block





Parameter:





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10





Wire Range                                AWG

16-24





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage                     KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                mm

φ1.3

Stripping Length                    mm

4-5

Screw / Torque                    / lbf.in

M2 / 1.8-2.0





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Drawing Specifications



Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block



Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal BlockPitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal BlockPitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block

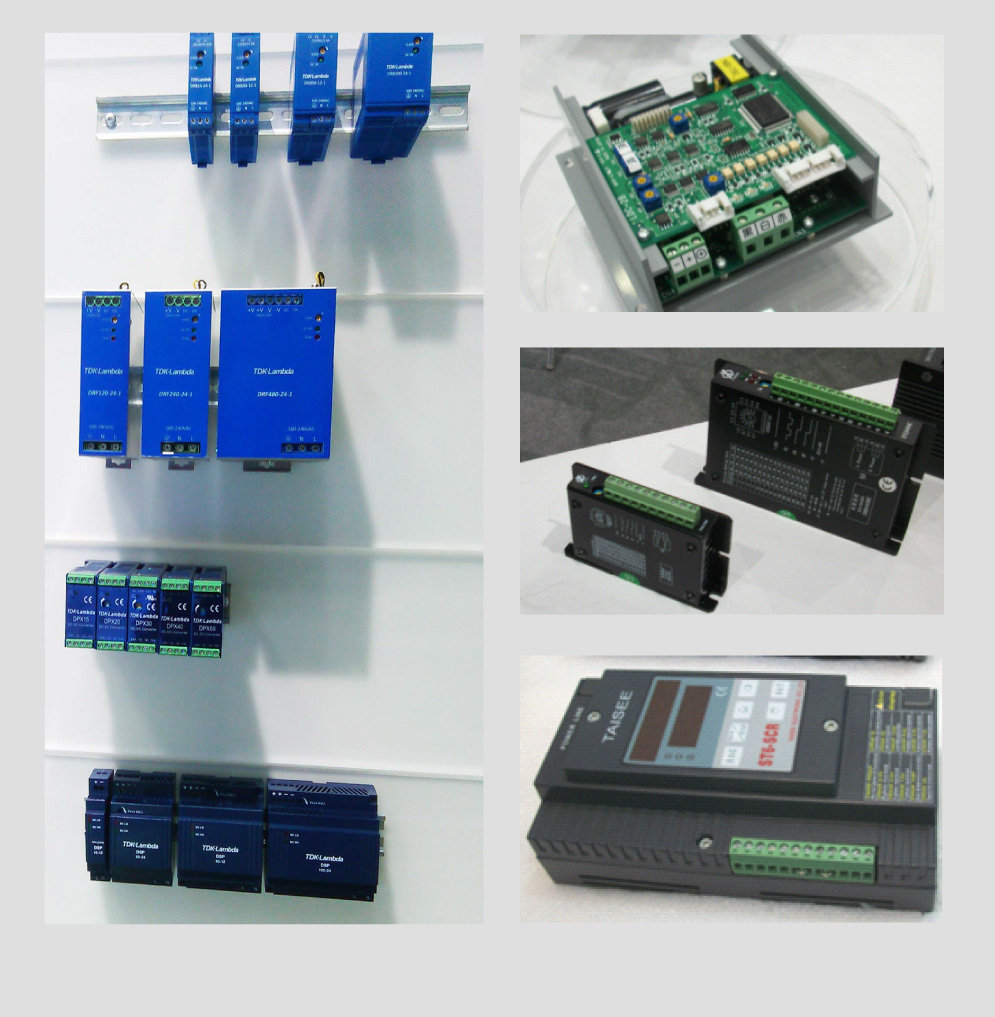

Photo of Applications:





Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block
