Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector

Name: Pitch 350mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector
Brand: SCED
Price: 1 USD

Buy cheap Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector product

Brand Name : SCED

Model Number : TJ381-09

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Packaging Details : Standard Export Carton

Material : PA66

Color : Green, other color available

Wire Range : 16-24 AWG

Screw : Steel/ M2

Stripping Length : 4-5mm

PCB Hole Diameter : φ1.3

Contact Now

Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector

Descripition:

1. Material: Plastic housing is PA66(UL94 V-0),

2. Operating temperature: -40 ℃~+105℃,

3. Clamp cage and header terminal using brass

4. Spring clamp with phophor bronze

5. Screw using high quality steel

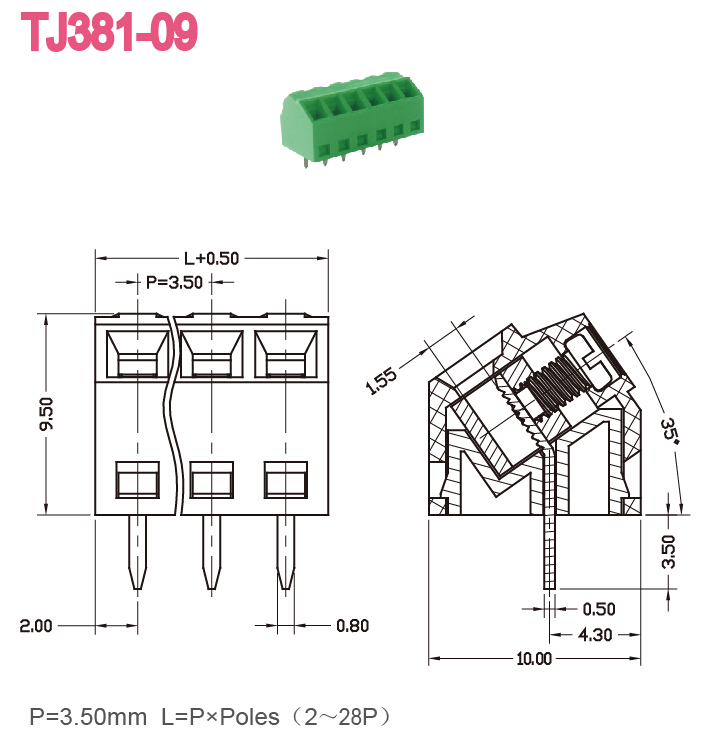

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 10
Wire Range AWG	16-24
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 10	200 / 10	400 / 10
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.0
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.3
Stripping Length mm	4-5
Screw / Torque / lbf.in	M2 / 1.8-2.0

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
