Right Angle Wire Feed Through Panel Mount Terminal Block PCB 600V 20A

Name: Right Angle Wire Feed Through Panel Mount Terminal Block PCB 600V 20A
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-3N-01

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Grey

Number of Contacts : 2P-16P

Pitch : 10.00mm

Rated Current : 20A

Rated Voltage : 600V

Type : Feed Through Terminal Block,Feed through terminal blocks, Feed through terminal connectors

Wire Range : 12-28

Contact Now

Right Angle Wire Feed Through Panel Mount Terminal Block PCB 600V 20A

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed-through terminal connectors,through wall terminal block,
Penal mount terminal Blocks

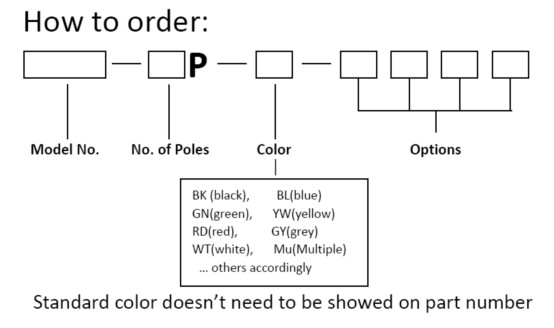

How to order:
Right Angle Wire Feed Through Panel Mount Terminal Block PCB 600V 20A

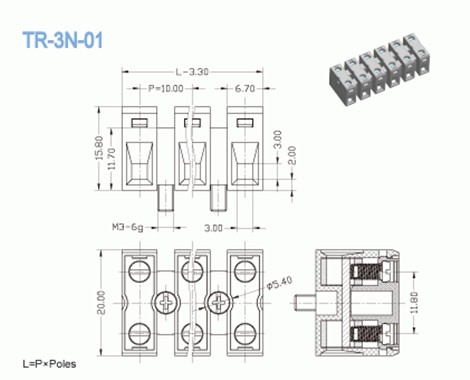

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 20	600 / 20
Wire Range AWG	12-28	12-28
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 32	1000 / 32	1000 / 32
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PL/ UL94, V-0
Conduction Board Plating	Cooper/Nickel Plated
Clamp Cage Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	5-6
Screw / Torque / lbf.in	M 3 / 4.4-5.3

Right Angle Wire Feed Through Panel Mount Terminal Block PCB 600V 20A

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
