Cable Feed Through Panel Terminal Block Connector Single Deck

Name: Cable Feed Through Panel Terminal Block Connector Single Deck
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TD150-01-C

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : Any Poles Available

Pitch : 27.00mm

Rated Current : 150A

Rated Voltage : 600V

Type : Feed Through Terminal Block,Feed through terminal connectors,Electrical terminal Blocks

Wire Range : 30-1/0

Contact Now

Cable Feed Through Panel Terminal Block Connector Single Deck

■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks

How to order:
Cable Feed Through Panel Terminal Block Connector Single Deck

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

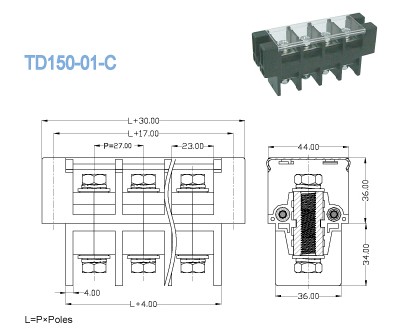

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 150	600 / 150
Wire Range AWG	30-1/0	30-1/0
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 150	1000 / 150	1000 / 150
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	50
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Conduction Board / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	16-18
Screw / Torque / lbf.in	M8 / 31-40

Cable Feed Through Panel Terminal Block Connector Single Deck

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
