Double Decks Panel Feed Through Terminal Block For Electric Power

Name: Double Decks Panel Feed Through Terminal Block For Electric Power
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TD100-01-C

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : Any Poles Available

Pitch : 21.0mm

Rated Current : 101A

Rated Voltage : 600V

Type : Feed Through Terminal Block,Feed through terminal blocks, Feed through terminal connectors

Wire Range : 2-20

Contact Now

Double Decks Panel Feed Through Terminal Block For Electric Power

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

Military, Elevator, etc..

600V 101A Panel Feed Through Terminal Block Pitch 21.0mm For Electric Power Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■Single Deck; □Double decks; □Triple decks

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors

How to order:

Double Decks Panel Feed Through Terminal Block For Electric Power

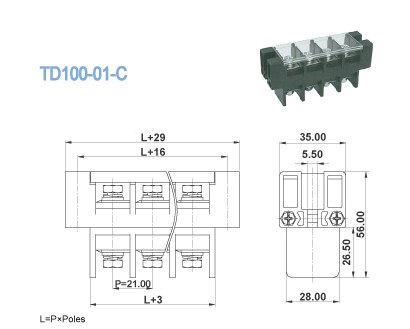

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 101	600 / 101	600 / 5
Wire Range AWG	2-20	2-20	2-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 101	1000 / 101	1000 / 101
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm2	25
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Conduction Board / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	11-12
Screw / Torque / lbf.in	M6 / 20-22

Double Decks Panel Feed Through Terminal Block For Electric Power

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ deman
