Double Level Barrier Terminal Block 300 Voltage 15A Pitch 7.62mm UL CE

Name: Double Level Barrier Terminal Block 300 Voltage 15A Pitch 762mm UL CE
Brand: SCED
Price: 1 USD

Place of Origin : China

Brand Name : SCED

Certification : UL, CE

Model Number : TB762-10V

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 2P-22P

Pitch : 7.62mm

Rated Current : 15A

Rated Voltage : 300V

Contact Now

Double Level Barrier Terminal Block 300 Voltage 15A Pitch 7.62mm UL CE

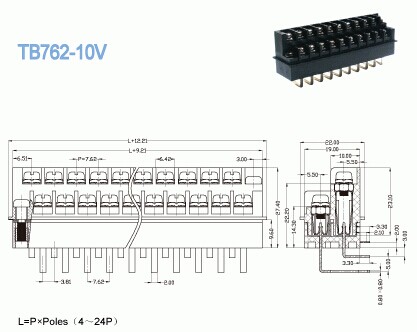

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 15		300 / 10
Wire Range AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Phosphor Bronze/ Gold Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Double Level Barrier Terminal Block 300 Voltage 15A Pitch 7.62mm UL CE

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Double Level Barrier Terminal Block 300 Voltage 15A Pitch 7.62mm UL CE
