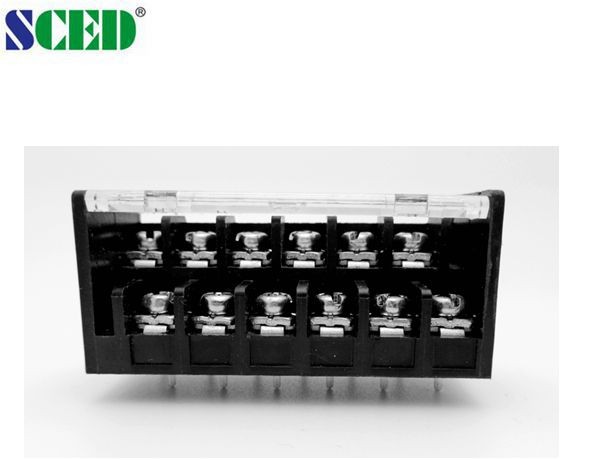

Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power

Name: Dual Decks 762mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power
Brand: SCED
Price: 1 USD

Buy cheap Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power product

Brand Name : SCED

Model Number : TB762-00-CMn

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Poles : 2-22 Poles

Pitch : 7.62mm

Rated Voltage : 300V

Rated Current : 15A

Wire Range : 14-22

Insulation Material : PBT

Inflammability Class : Inflammability Class

Stripping Length : 7-8

Contact Now

Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power

Quick Details:

Model: TB762-00-CMn

Pitch: 7.62mm
Poles: 2-22 Poles
Rated Voltage: 300v
Rated Current: 15A
Wire Range: 14-22 AWG

Descripition:

1. Barrier terminal block made by PBTmaterial

2. Inflammability Class is UL94, V-0,can be used for LED Power.

3. Black color is main color, the other colors are available.

Parameter and Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/15		300/10
Wire Range AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Tag:

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.

Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power

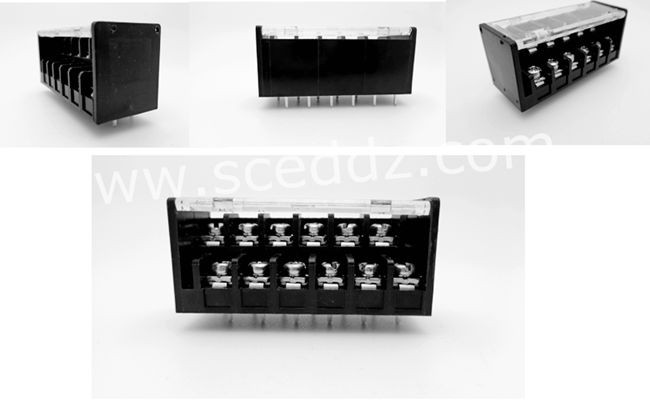

Drawing photo and Detail photo

Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power
