PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

Name: PCB Spring Terminal Block 5 AMP 1622 AWG PCB Screwless Terminal Connector 350m381mm
Brand: SCED
Price: 1 USD

Buy cheap PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm product

Brand Name : SCED

Model Number : TJ381-03-D6

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Packaging Details : Standard Export Carton

Item : Spring

Current : 5a

Voltage : 300v

Material : PA66

Poles : 1p Any poles

Wire Range : 16-22 AWG

Contact Now

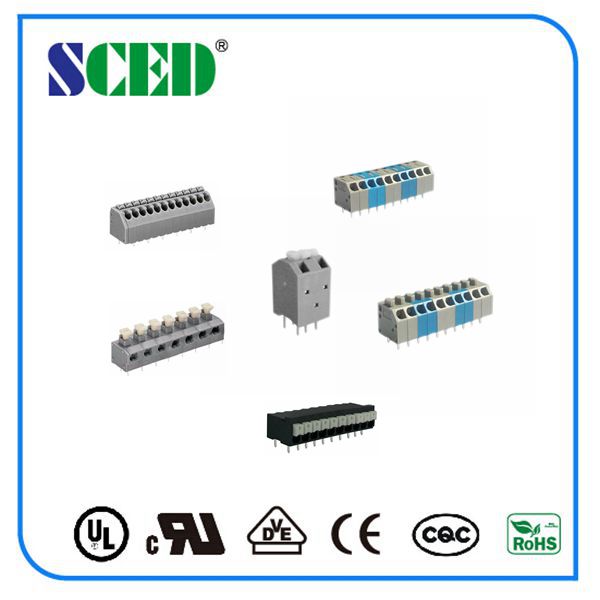

PCB Spring Terminal Block 5AMP 16-22 AWG PCB Screwless Terminal Connector

Quick Details:

For the pcb spring terminal blocks,

1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm,5.08mm,7.62mm
2. Diverse wire inlet direction
3. Compact structure
4. Simple operating
5. Strong vibration resistance

Spec.:

300V/5A

16-22 AWG

PA66 Material

Phosphor Bronze Terminal

PCB Hole Diameter: φ1.2

Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/5
Wire Range AWG	16-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 5	400 / 5	630 / 5
Rated Surge Voltage KV	4	4	2.5
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring / Plating
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Stripping Length mm	8-9

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Application:

1. Lighting
2. Instrument
3. Power supply
4. Lift, etc.

Photo of Drawing

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

More Products:

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

Packing Photo:
