Spring Clamp Terminal Block Connector

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ381-15

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Grey

Number of Contacts : 2P-28P

Pitch : 3.50mm

Rated Current : 10A

Rated Voltage : 300V

Type : Spring Terminal Block,Spring terminal blocks, Spring Clamp terminal blocks

Wire Range : 14-26(sol) 16-26(str)

Contact Now

Spring Clamp Terminal Block Connector



□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



How to order:
Spring Clamp Terminal Block Connector

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

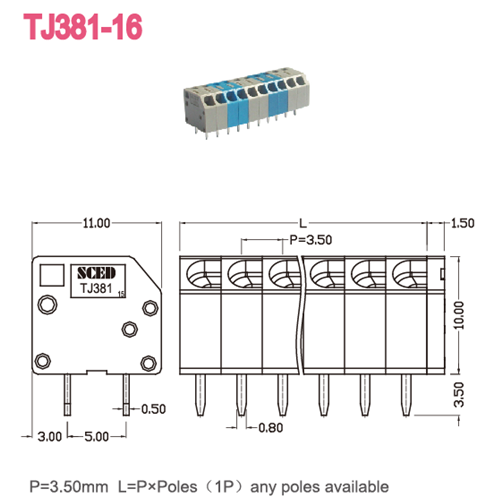

Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

14-26(sol) 16-26(str)



14-26(sol) 16-26(str)

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

125 / 10

250 / 10

320 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

8-9





Spring Clamp Terminal Block Connector



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
