10Amp 3.81mm Spring Cage Terminal Block Connector Single Deck UL CE

Name: 10Amp 381mm Spring Cage Terminal Block Connector Single Deck UL CE
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ381-05

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Grey

Number of Contacts : 2P-28P

Pitch : 3.81mm

Rated Current : 10A

Rated Voltage : 300V

Type : Spring Terminal Block,Screwless terminal blocks, Electrical terminal Blocks

Wire Range : 16-20

Contact Now

10Amp 3.81mm Spring Cage Terminal Block Connector Single Deck UL CE

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

PCB Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory

How to order:
10Amp 3.81mm Spring Cage Terminal Block Connector Single Deck UL CE

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

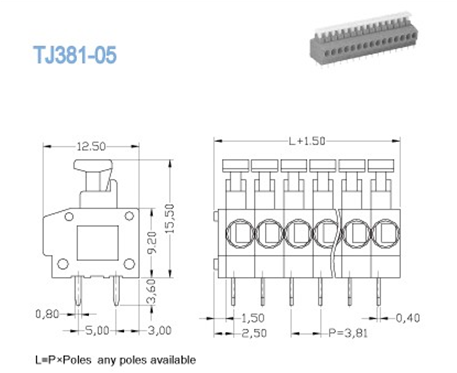

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10
Wire Range AWG	16-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 10	320 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring / Plating	Stainless Steel / -
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Stripping Length mm	9-10

10Amp 3.81mm Spring Cage Terminal Block Connector Single Deck UL CE

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
