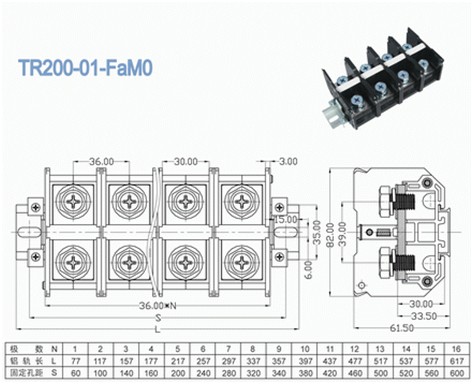

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 200 | 600 / 20 | |
| Wire Range AWG | 4/0-20 | 4/0-20 | |
| IEC Technical Data | |
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /200 | 1000 / 200 | 1000 / 200 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 100 |
| Material | |
| Insulation Material / Inflammability Class | PC / UL94, V-0 |
| Conduction Board/ Plating | Brass /Nickel Plated |
| Screw / Plating | Steel / Zinc Plated |
| Other Data | |
| Stripping Length mm | 14-18 |
| Screw Torque mm | M 10 / 50-60 |
200A 600V High Current Rail Terminal Connectors, 24P Power Terminal Block 36.00mm Pitch
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Detailed product Description:
200A 600V High Current Rail Terminal Connectors, 24P Power Terminal Block 36.00mm Pitch
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
How to order:
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
