600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric

Name: 600V 50A Din Rail Mounted Terminal Blocks 82mm Feed Through Connector for Electric
Brand: SCED
Price: 1 USD

Buy cheap 600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric product

Brand Name : SCED

Model Number : TR-6N

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Wire Inlet : Right angle wire inlet

Terminal Width : 8.2mm

Type : Rail Mounted Terminal Blocks, Electrical terminal Blocks, Terminal block connectors

Wire Range : 26-8

Rated Voltage : 600V

Rated Current : 50A

Color : Black

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Contact Now

600V 50A Din Rail Mounted Terminal Blocks 8.2mm Feed Through Connector for Electric

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

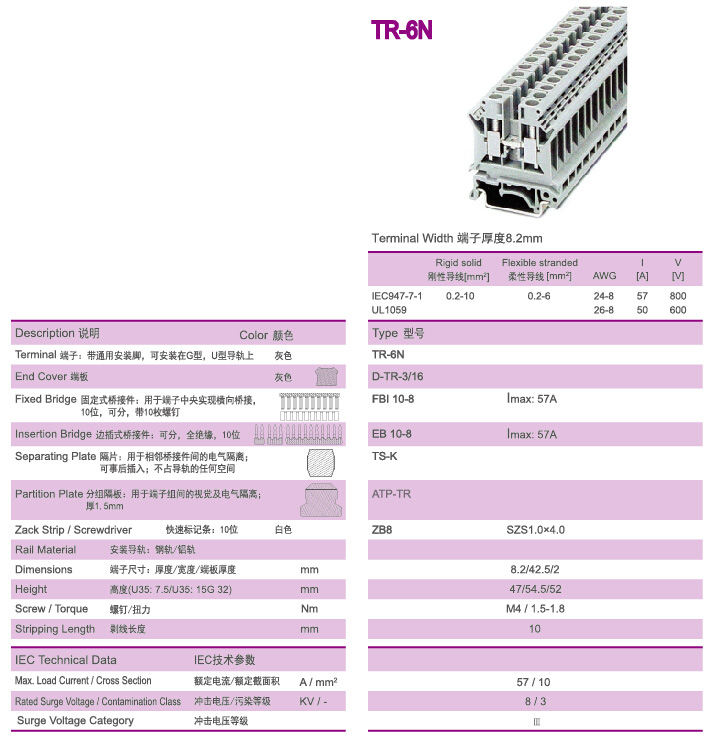

Parameter

Description Color	Type
Terminal Grey	TR-6N
End Cover Grey	D-TR-3/16
Fixed Bridge	FBI 10-8 Imax: 57A
Insertion Bridge	EB 10-8 Imax: 57A
Separating Plate	TS-K
Partition Plate	ATP-TR
Zack Strip White	ZB8
Screwdriver	SZS 1.0×4.0
Rail Material	aluminum
Dimensions mm	8.2/42.5/2
Height (U35: 7.5/U35: 15G 32) mm	47/54.5/52
Screw / Torque Nm	M4 / 1.5-1.8
Stripping Length mm	10
IEC Technical Data
Max. Load Current / Cross Section A / mm²	57 / 10
Rated Surge Voltage / Contamination Class KV / -	8 / 3
Surge Voltage Category	Ⅲ

Competitive Advantage:

Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand

Drawing Photo

600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric
