Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A

Product Categories

SCED ELECTRONICS CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Pitch 508mm PCB Terminal Blocks Euro Type High Temperature 300V 10A
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ508-08V

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Number of Contacts : 2P-22P

Pitch : 5.08mm

Rated Current : 10A

Rated Voltage : 300V

Type : PCB Terminal Block,PCB mount terminal blocks, PCB screw terminal blocks

Contact Now

Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A

Type:	PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series	Pitch:	5.08mm
Rated Voltage:	300V	Rated Current:	10A
Standard Color:	Green, other color is available	Number Of Contacts:	2P-24P
Wire Range:	12-26AWG	Applications:	PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks , PCB screw terminal blocks, Euro type Raising series

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10		300/10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 10	400 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.6
Stripping Length mm	7-8
Screw / Torque / lbf.in	M3 / 4.4-5.3

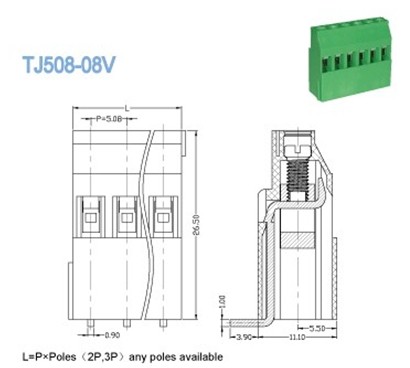

Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A

Competitive Advantage:

Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A
