Industrial High Voltage Through Panel Terminal Blocks Double Decks

Name: Industrial High Voltage Through Panel Terminal Blocks Double Decks
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-150N-02F

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 100K poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Grey

Number of Contacts : 1P-24P

Pitch : 30.00mm

Rated Current : 285A

Rated Voltage : 600V

Type : Through Panel Terminal Block,Through Wall terminal blocks, Bulkhead connectors

Wire Range : 2-300kcmil

Contact Now

Industrial High Voltage Through Panel Terminal Blocks Double Decks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors

How to order:
Industrial High Voltage Through Panel Terminal Blocks Double Decks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

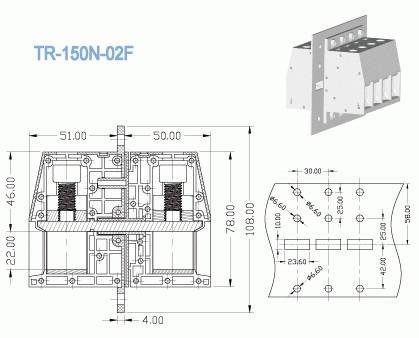

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 285
Wire Range AWG	2-300kcmil
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 309	800 / 309	1000 / 309
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	150
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Steel / Nickel Plated
Conduction Board / Plating	Copper / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	26
Screw / Torque / lbf.in	M10 / 50-60

Industrial High Voltage Through Panel Terminal Blocks Double Decks

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
