Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet , 5.08mm Pitch 2-18P

Name: Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet 508mm Pitch 218P
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP508H-04

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors

Pitch : 5.08mm

Number Of Contacts : 2P-18P

Rated Voltage : 300V

Rated Current : 18A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Wire Inlet : 45 degree wire inlet

Contact Now

Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet, 5.08mm Pitch 2-18P 300V 18A, Plug-in Terminal Blocks

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

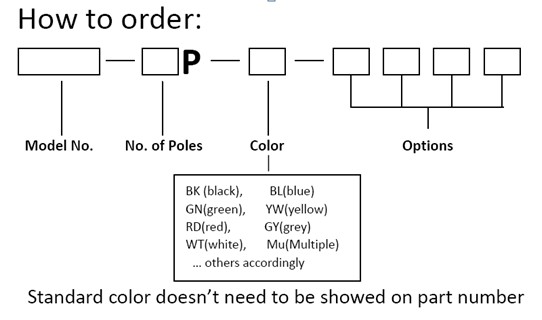

How to order:

Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet , 5.08mm Pitch 2-18P

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 18
Wire Range AWG
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 18	400 / 18	500 / 18
Rated Surge Voltage KV	4	4	4
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.4
PinDimension mm	1.0 x 1.0

Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet , 5.08mm Pitch 2-18P

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
