300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block

Name: 300A 600V High Current Terminal Block Connector Pitch 45mm Power Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR300-01-BM0

MOQ : 300

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 500K poles each monthly

Type : High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks

Pitch : 45mm

Rated Voltage : 600V

Rated Current : 300A

Color : Black

Number Of Contacts : Any Poles Available

Wire Range : 4-350kcmil

Applications : PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block

■Single Level; □Double levels; □Triple levels

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:

300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

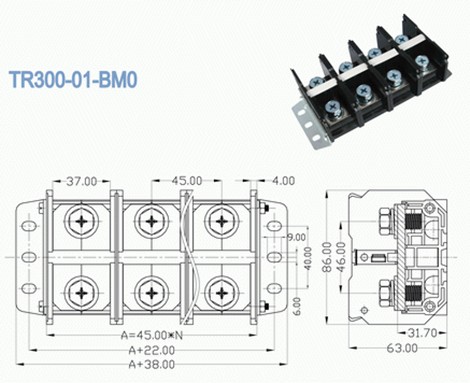

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 300	600 / 300
Wire Range AWG	4-350kcmil	4-350kcmil
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 300	1000 / 300	1000 / 300
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	150
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Terminal / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	19-21
Screw / Torque / lbf.in	M10 / 50-60

300A 600V High Current Terminal Block Connector , Pitch 45mm Power Terminal Block

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
