PCB Plug In Terminal Block 2 - 22 Poles 18A Male And Female Connector

PCB Plug In Terminal Block 2 - 22 Poles 18A Male And Female Connector

Quick Detail

1. Pluggable terminal blocks is widely used in servo drive, security commucation, power industry, energy conservation and etc.

1. can be connected with TP508H-00 TP508H-00V, TP508H-01, TP508H-01V, TP508H-04,TP508H-05,TP508H-06, TP508H-06V, TP508H-07, TP508H-07V,

2. The pluggable system work toghter by plug and header.

3. The main characteristics is they can be achieved power on or off freely.

4. The plug can be plugged in and out very conveniently.

5. Material: Plastic housing is PA66(UL94 V-0), operating temperature: -40℃~+105℃ Clamp cage and header terminal using brass, spring clamp with phosphor bronze, screw using high quality steel.


This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03,

TP381P-04, please see the photos show before

Standard color: Green color. Other colors also available, please refer to below How to Order and

select the color

you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

 Military,
Elevator, etc..

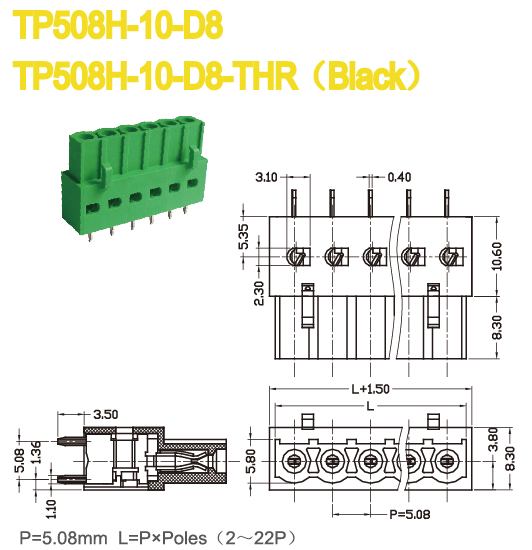

Parameter and Drawing Specifications:

Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand​​

Drawing Photo

power terminal block connector

electric terminal block

PCB Plug In Terminal Block 2 - 22 Poles 18A Male And Female Connector Images
