Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

Name: Panel Mount Terminal Connector Black 740mm 300V 20A 7P Feed Through Terminal
Brand: SCED
Price: 1 USD

Buy cheap Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal product

Brand Name : SCED

Model Number : TR-3N-04

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Type : Panel Mount Terminal Block, Electrical terminal Block

Pitch : 7.40mm

Number Of Contacts : 7P

Wire Range : 16-22

Rated Voltage : 300V

Rated Current : 20A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Feed through terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:
Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 20	300 / 20
Wire Range AWG	16-22	16-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 20	320 / 20	400 / 20
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PL/ UL94, V-0
Conduction Board Plating
Clamp Cage Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
Stripping Length mm	5-6
Screw / Torque / lbf.in	M 3 / 4.4-5.3

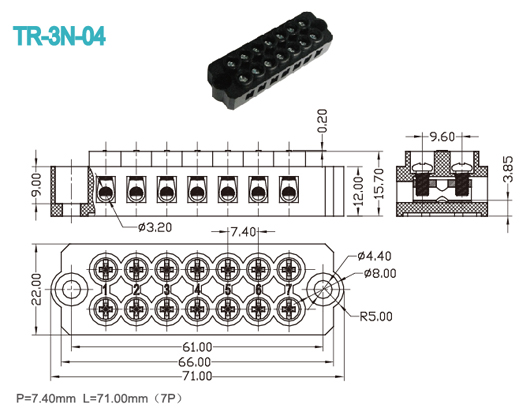

Drawing Photos:

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
