Pcb Screw Terminal Block 15.00mm 115A Hign Current Terminal Connector 2 - 9 pin
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color:Green. Other colors also available, please refer to below How to Order and select the color you
want.
Tag:
PCB terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication,
Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

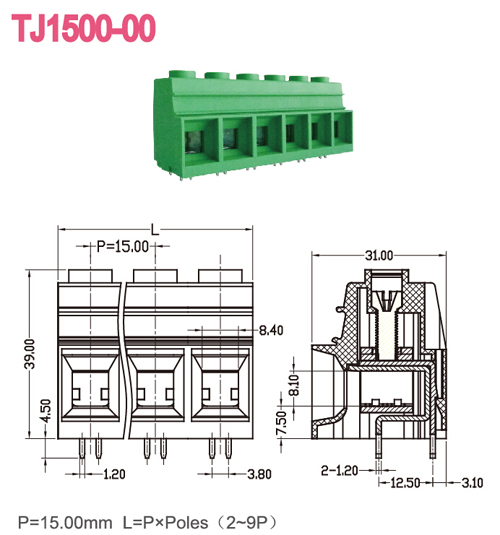

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 115 | | |
| Wire Range AWG | 2-20 | | |
| IEC Technical Data | |
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 1000 / 125 | 1000 / 125 | 1000 / 125 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 35 |
| Material | |
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 |
| Clamp Cage / Plating | Steel /Zinc Plated |
| Terminal / Plating | Copper / Tin Plated |
| Screw / Plating | Steel / Zinc Plated |
| Other Data | |
| PCB Hole Diameter mm | φ2.0 |
| Stripping Length mm | 18 |
| Screw / Torque / Ibf.in | M5 / 18-22 |
