Electrical Feed Through Terminal Block Connector 600 Voltage 60A PA66 12.70mm

  • 1
  • 2

Brand Name : SCED

Model Number : TD60-00

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 200

Price : Get latest price

Payment Terms : T/T

Supply Ability : 100K poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 2P or 3P

Pitch : 12.70mm

Rated Current : 60A

Rated Voltage : 600V

Type : Feed Through Terminal Block,Feed through terminal connectors,Electrical terminal Blocks

Wire Range : 8-26

Contact Now



Electrical Feed Through Terminal Block Connector 600 Voltage 60A PA66 12.70mm


Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.

Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks





How to order:
Electrical Feed Through Terminal Block Connector 600 Voltage 60A PA66 12.70mm


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

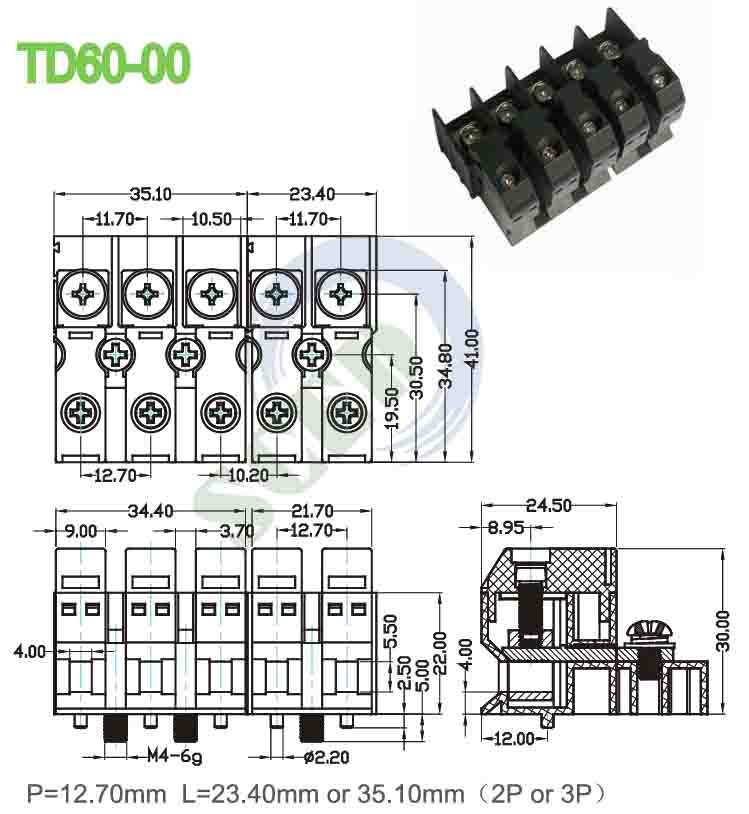

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                       AWG

8-26

8-26



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M4 / 10.6-13



Electrical Feed Through Terminal Block Connector 600 Voltage 60A PA66 12.70mm


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
