Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A

  • 1
  • 2

Brand Name : SCED

Model Number : TP508P-80

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Type : Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Pitch : 7.62mm

Number Of Contacts : 2P-16P

Rated Voltage : 300V

Rated Current : 12A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A



■Single Level;  □Double Levels;  □Triple Levels

This female plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:

Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A

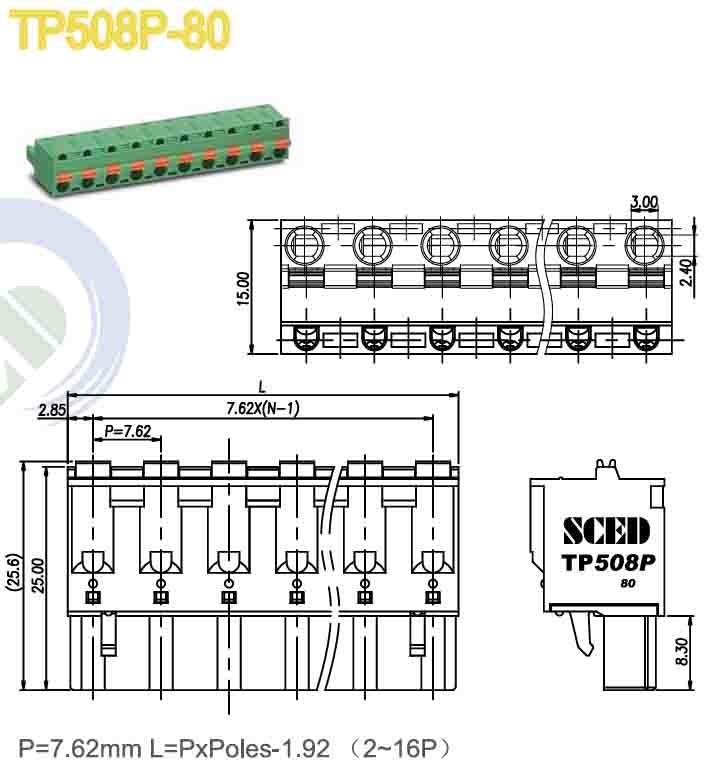

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 12



300 / 10

Wire Range                       AWG







IEC Technical Data







Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 10

630 / 10

800 / 10

Rated Surge Voltage                 KV

     6



6

6

Rated Connecting Capacity           mm2



Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Phosphor Bronze / Tin Plated

Clamp Cage / Plating



Screw / Plating



Other Data



Stripping Length                    mm

               9-10

Screw / Torque                    / lbf.in

           N.A




 Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
