Female Sockets Screwless Pluggable Terminal Block

Name: Female Sockets Screwless Pluggable Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP381P-25F

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto

Pitch : 3.50mm

Number Of Contacts : 2*2P-22*2P

Wire Range : 16-30

Rated Voltage : 300V

Rated Current : 8A

Color : Yellow

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2*2P-22*2P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

□Single Level; ■Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-25F, TP381H-25VF
Standard color: Yellow. Other colors also available, please refer to below How to Order and select the color you want.

How to order:
Female Sockets Screwless Pluggable Terminal Block

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

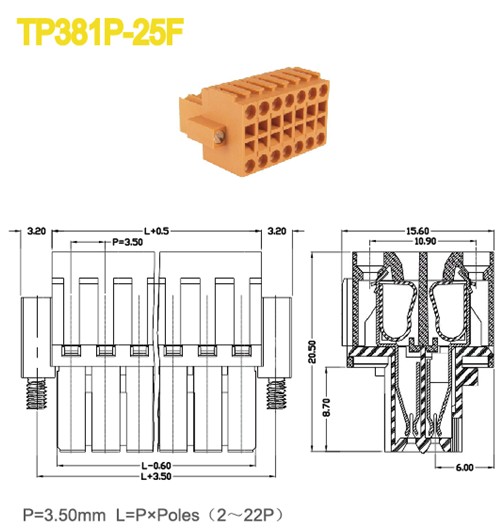

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 8
Wire Range AWG	16-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring Clamp	Stainless Steel
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
Stripping Length mm	7

Female Sockets Screwless Pluggable Terminal Block

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
