5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P

Name: 508mm 300V 18A Screwless Terminal Block Female Plug In Terminal Blocks 2P 22P
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP508P-07

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto

Pitch : 5.08

Number Of Contacts : 2P-22P

Wire Range : 12-30

Rated Voltage : 300V

Rated Current : 18A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:
5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P

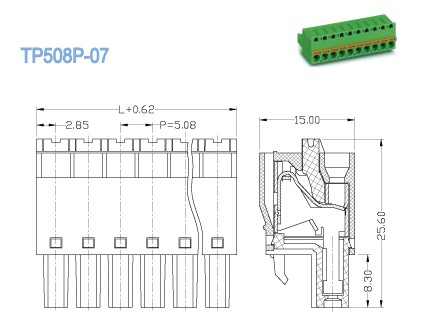

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 18
Wire Range AWG	12-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 18	320 / 18	630 / 18
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring Clamp	Stainless Steel
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
Stripping Length mm	10

5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
