600V 30A Black PCB High Current Terminal Block For Server Site

Name: 600V 30A Black PCB High Current Terminal Block For Server Site
Brand: SCED
Price: 1 USD

Buy cheap 600V 30A Black PCB High Current Terminal Block For Server Site product

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR30-02-BM0

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : Any Poles Available

Pitch : 12.00mm

Rated Current : 30A

Rated Voltage : 600V

Type : High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks

Wire Range : 10-20

Contact Now

600V 30A Black PCB High Current Terminal Block For Server Site

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:
600V 30A Black PCB High Current Terminal Block For Server Site

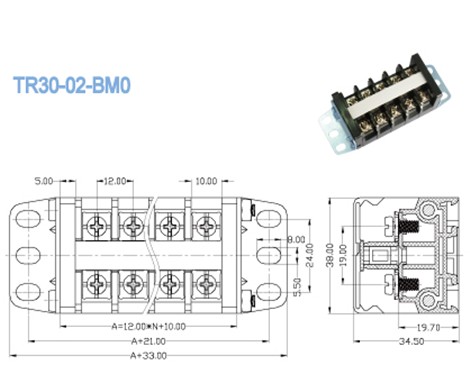

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 30	600 / 30
Wire Range AWG	10-20	10-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 30	800 / 30	1000 / 30
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	5.5
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Terminal / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	9-10
Screw / Torque / lbf.in	M4 / 10.6-13

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
